WD VelociRaptor

Shadowsilence · Posted: Wed, 18 Jun 2008 12:52:23 Post Subject: WD VelociRaptor

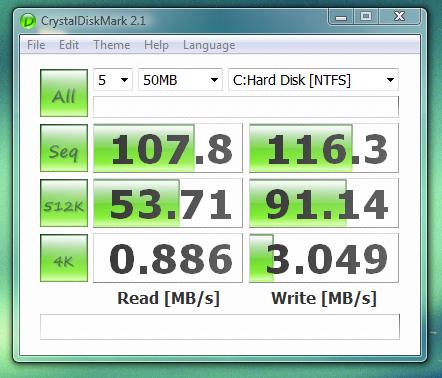

I recently just purchased a Western Digital VelociRaptor WD3000GLFS 300GB 10000 RPM 16MB Cache SATA 3.0Gb/s Hard Drive. In case anyone was curious, I did a quick benchmark with CyrstalDiskMark 2.1. My system specs are as follows: Intel Core 2 Duo 2.66Ghz. 4 GB G.Skill ram, and Windows Vista Ultimate x64 with Sp1. I'm not sure if they're good times or not, but sharing for anyone interested in the drive.

**Jason** · Posted: Wed, 18 Jun 2008 13:48:41 Post Subject:

Cool! Got any other drives to run for comparison? I am not familiar with that test... Grin

Shadowsilence · Posted: Wed, 18 Jun 2008 16:44:02 Post Subject:

I attempted to use HD Tach, but the version I found didn't work with Vista. If you know any other more known benchmark utilities I'll try them too. I'll also hook up a 750gig seagate, and a 120gig older seagate when I have the computer apart again.

**BeerCheeze** · Posted: Wed, 18 Jun 2008 17:22:47 Post Subject:

**Jason** · Posted: Wed, 18 Jun 2008 17:23:50 Post Subject:

Or try HD Tune. Just like HD Tach, but 100% more Vista-ier.

SpeedZone · Rated NC-17 Joined: 06 Apr 2008 Posts: 193

VelociRaptor is surely a beast...no doubt here...and every real computer enthusiasts dream (mine too Grin

). I actually wanted to buy previous version of Raptor...150GB model...but since i needed more storage space instead of just pure raw speed...i bought Samsung's SpinPoint 1TB drive. And before i ran this benchmark...I though that VelociRaptor would eat my Samsung for breakfast....but as you are able to see below...thats just not quite the case....while it is faster here and there...there are areas where Samsung is faster too.

Anyway...here are results...1st pic (above) is from my 2 WD (120&160GB) IDE drives in RAID0 -- I believe they could do better if only they werent limited to use UATA100...because single drive (in hdtach) starts reading at some 60MB/s and ends at around 45MB/s...so 2 drives in RAID0 should start way over 100MB/s...but UATA100 limits that to just 100MB/s...so in hdtach...there is looooooong line just under 100MB/s....and only close to an end of disc(s)...it slowly goes down to around 70MB/s....averaging around 80MB/s. Shame that they cant do more, although they could. Bang Head

2nd pic (below) is from Samsung 1TB drive...not much to say there...exept that it's hard to determine a true winner...i would say its a draw of some sort...or what do you guys and girls think? Confused

Maybe we really should include hdtach, hdtune and/or some other benchmarks to be able to know more...who knows?!! King

Shadowsilence · Posted: Thu, 19 Jun 2008 13:11:03 Post Subject:

SpeedZone · Rated NC-17 Joined: 06 Apr 2008 Posts: 193

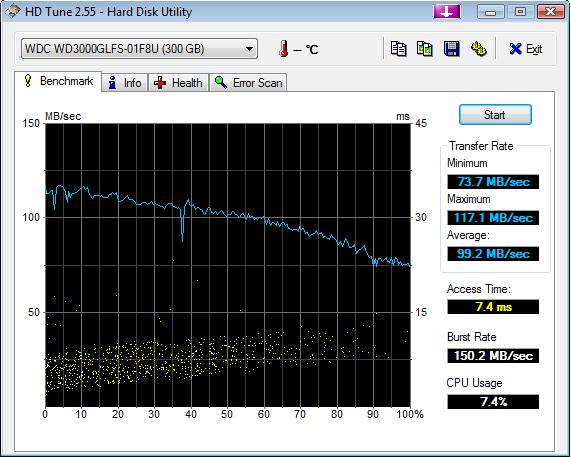

Wow...here (in HdTune) the all the greatness of VelociRaptor was unleashed. It did better (not by some BIG amount but still) in all areas exept CPU usage (but that doesnt count much).

While average transfer rate was 7MB/s higher than at Samsung...what i was most impressed with...was access time (7.4ms against 16.1ms)! Finally...burst 150MB/s vs. 113MB/s. Btw...the Velociraptor is SATA2 drive right? If so, its the same as Samsung...and both scored only up to SATA (1)'s max....so 150MB/s. Strange... Rolling Eyes

Even more because in almost every other disk benchmark software i tested my hdd with...it scored around 220-230MB/s at burst (i'll attach the HdTach results below too), while here...it scored "only" 113MB/s (and i am sure VelociRaptors max burst should be way over 200MB/s too. Since the HdTune v2.55 was released in February 2008, and both hdd's are newer than that...i believe its some sort of software's fault not to give true results (at least at burst rate - not sure about else). Also if I try to check drive's info...it doesnt say whether it's IDE or SATA, nor its buffer size (while at my older ide raid0 hdd's it reports everything just nice), and also it didnt detect your (Velociraptor's) temperature... Bang Head

Ok nevermind...here is the screenshot....congrats to Velociraptor which took the lead for now...and cya in next round(s)...hahahhaha...although the winner in best speed and access times is already known....WD...but in terms of not just speed but also big capacity (1TB) and price...Samsung is the winner.... Grin

SpeedZone · Rated NC-17 Joined: 06 Apr 2008 Posts: 193

Since i couldnt attach one more pic to the post above....i replied and here it is...hope its ok.... Wink

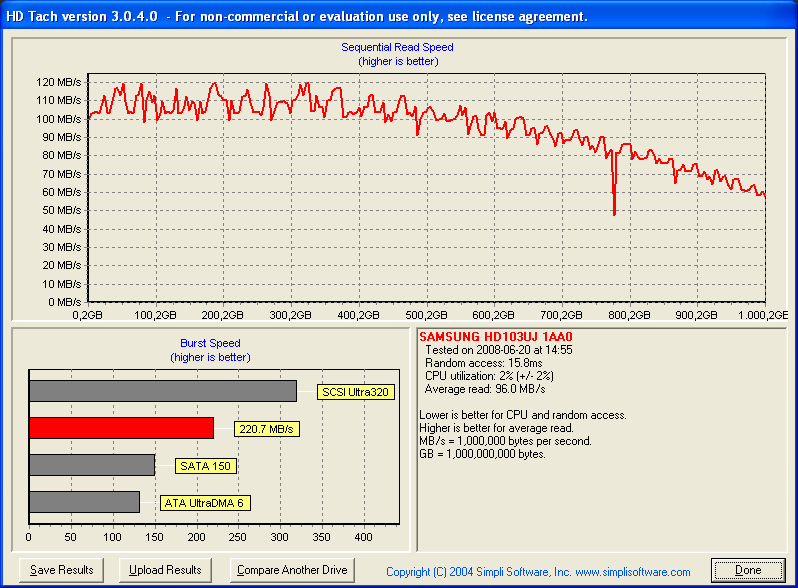

HdTach 3.0.4.0...average speed is maybe 3MB/s higher...few ms also access time...so no big deal...but here is the part i was talking about...BURST....220MB/s! And in HdTune it was 113MB/s....so one is clearly wrong...question is which one... Confused
